BLE Telesketch

BLE Telesketch

Only for boards with Bluetooth BLE, a TFT screen, and an accelerometer, such as the ED1, M5Stack-Core, Co-Cube, and others. A simpler version can also be made for boards with an LED display, such as the micro:bit or micro:STEAMakers.

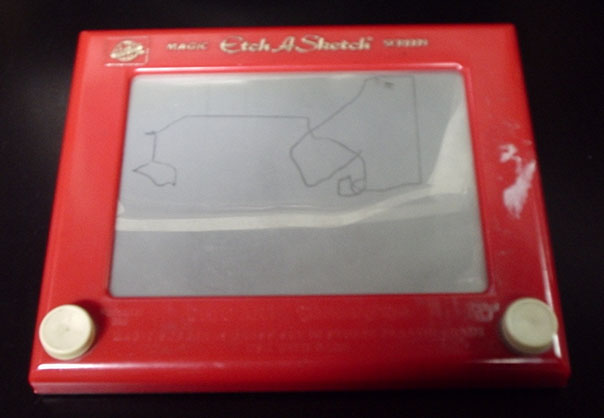

• The Telesketch, or Etch A Sketch, is a toy that became popular in the 1960s. It allowed users to draw on a screen that simulated a television. It had two knobs that controlled the horizontal and vertical movement of the cursor. To erase the drawing, there was a button that cleared the entire screen.

CC BY-SA 3.0, https://commons.wikimedia.org/w/index.php?curid=623459

• In this activity, we'll build a collaborative version of the Telesketch by using the ability to connect multiple boards via BLE (Bluetooth Low Energy).

Building the game without connection

• We'll start by building the game without the BLE connection.

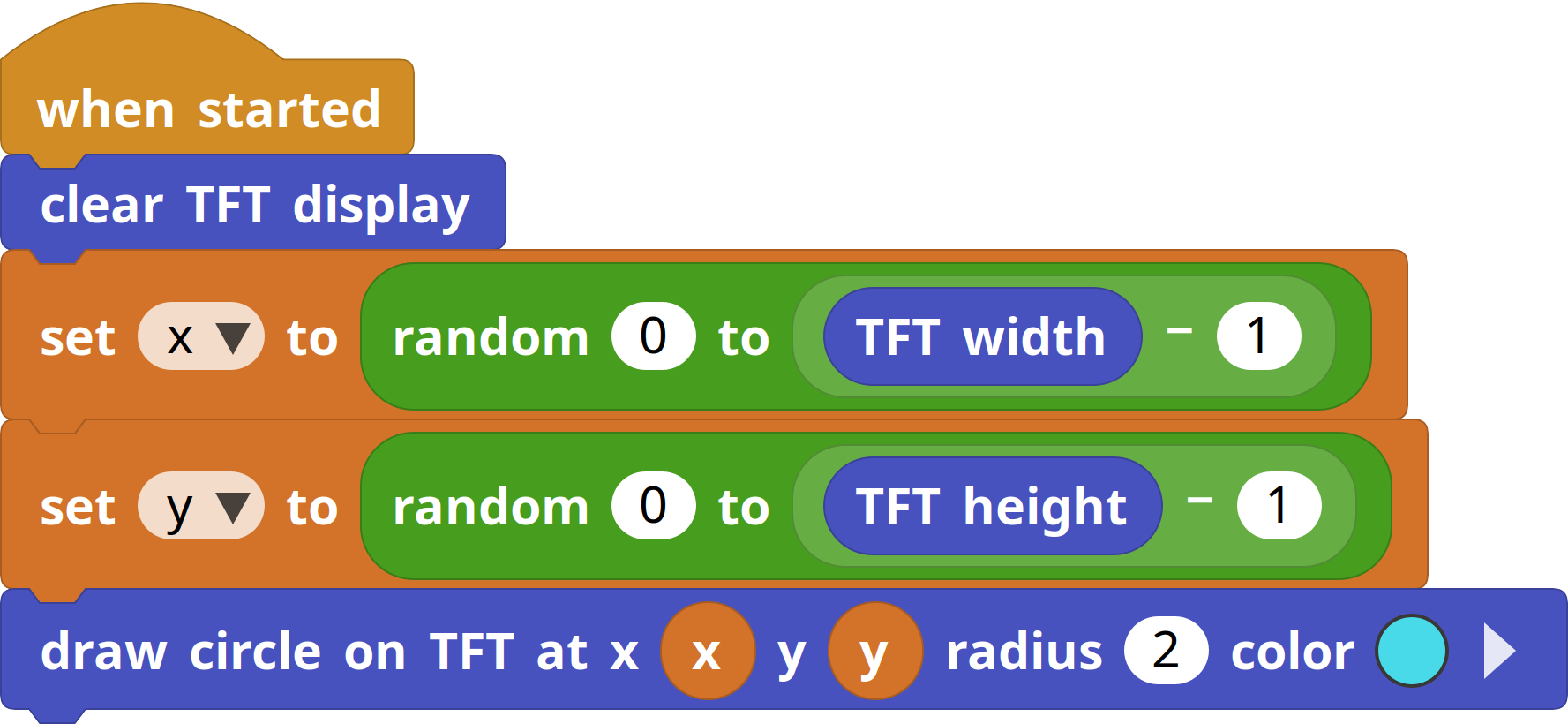

• The first step is to define two variables, x and y, to store the coordinates of a circle that we'll randomly position on the TFT screen.

• Using the accelerometer, we'll make the circle move across the screen by tilting the board.

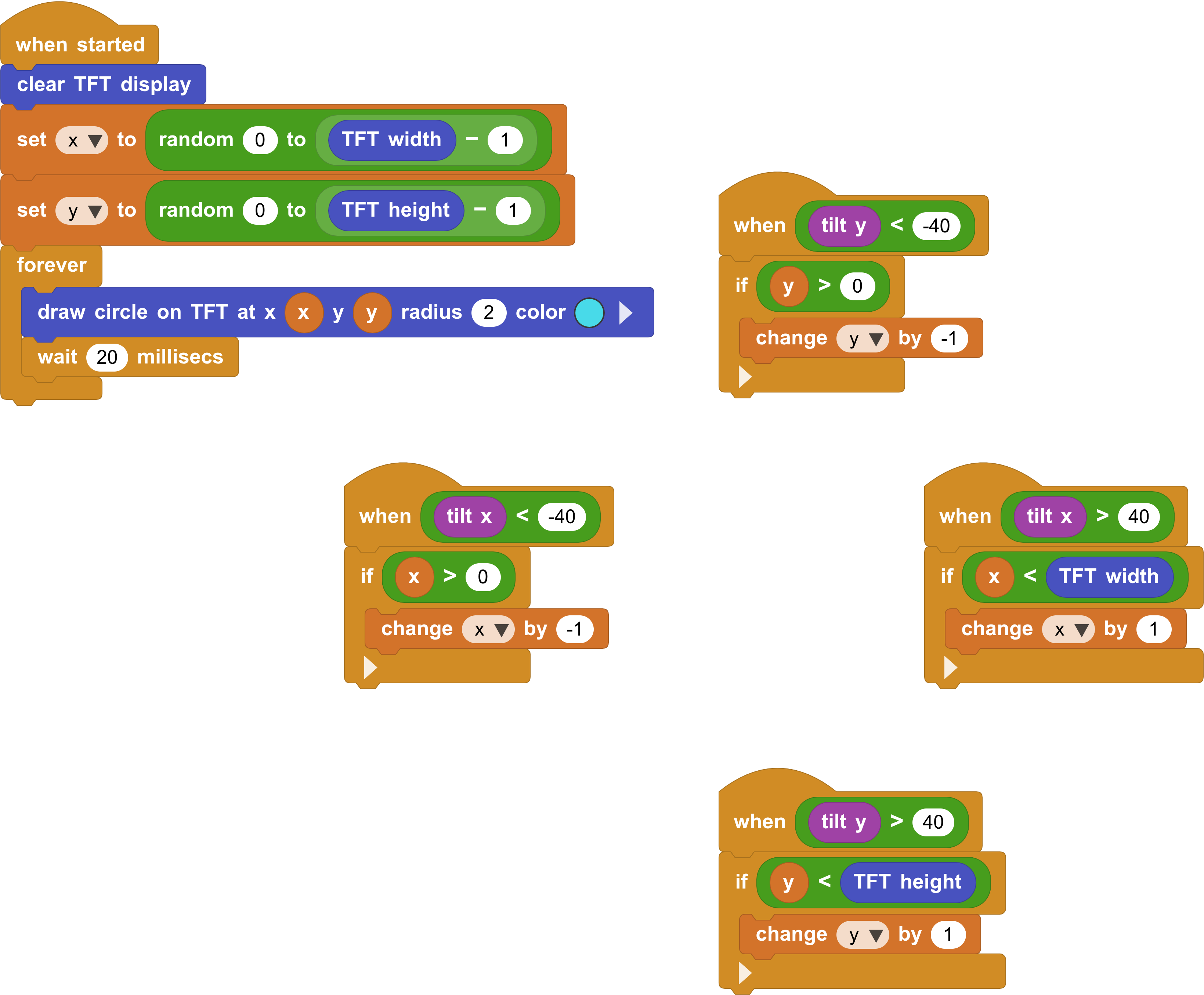

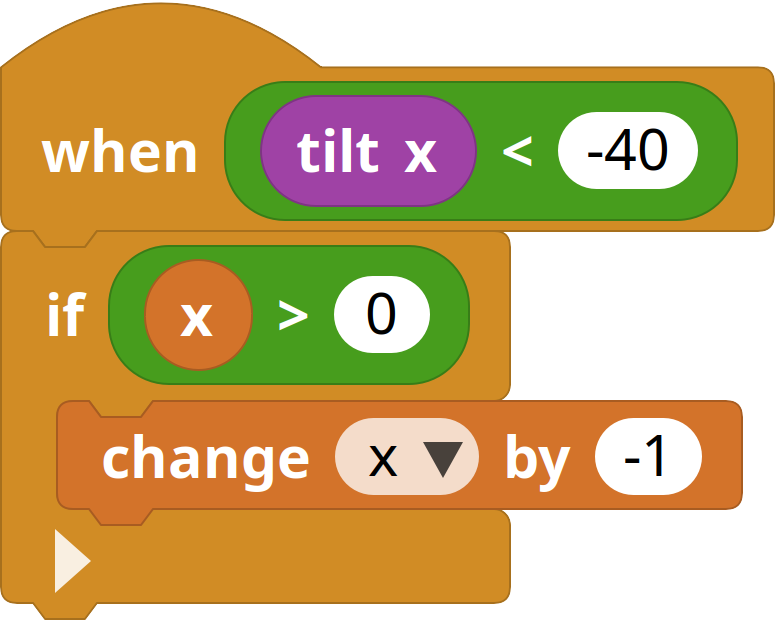

• For example, when the tilt x is below a certain value, we move left by decreasing the x coordinate.

Challenge 1: Complete the circle movement

• Since this will be a collaborative Telesketch, each participant will have their own color. For this reason we define a variable color with a random value.

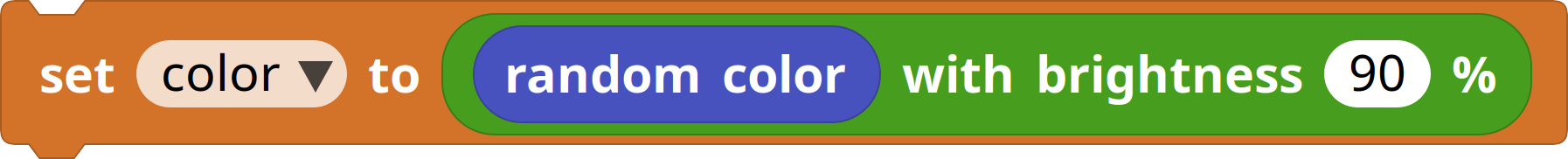

• To ensure the color isn't too dark and remains visible on the screen, we use the _ with brightness _ % block from the Color library, setting it to 90% brightness.

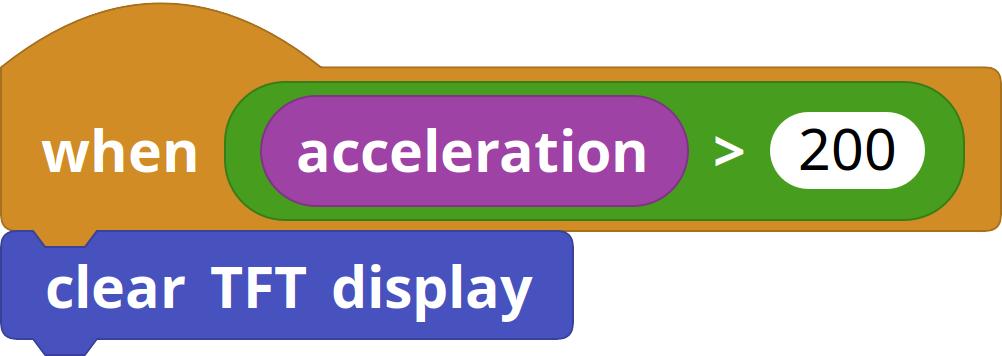

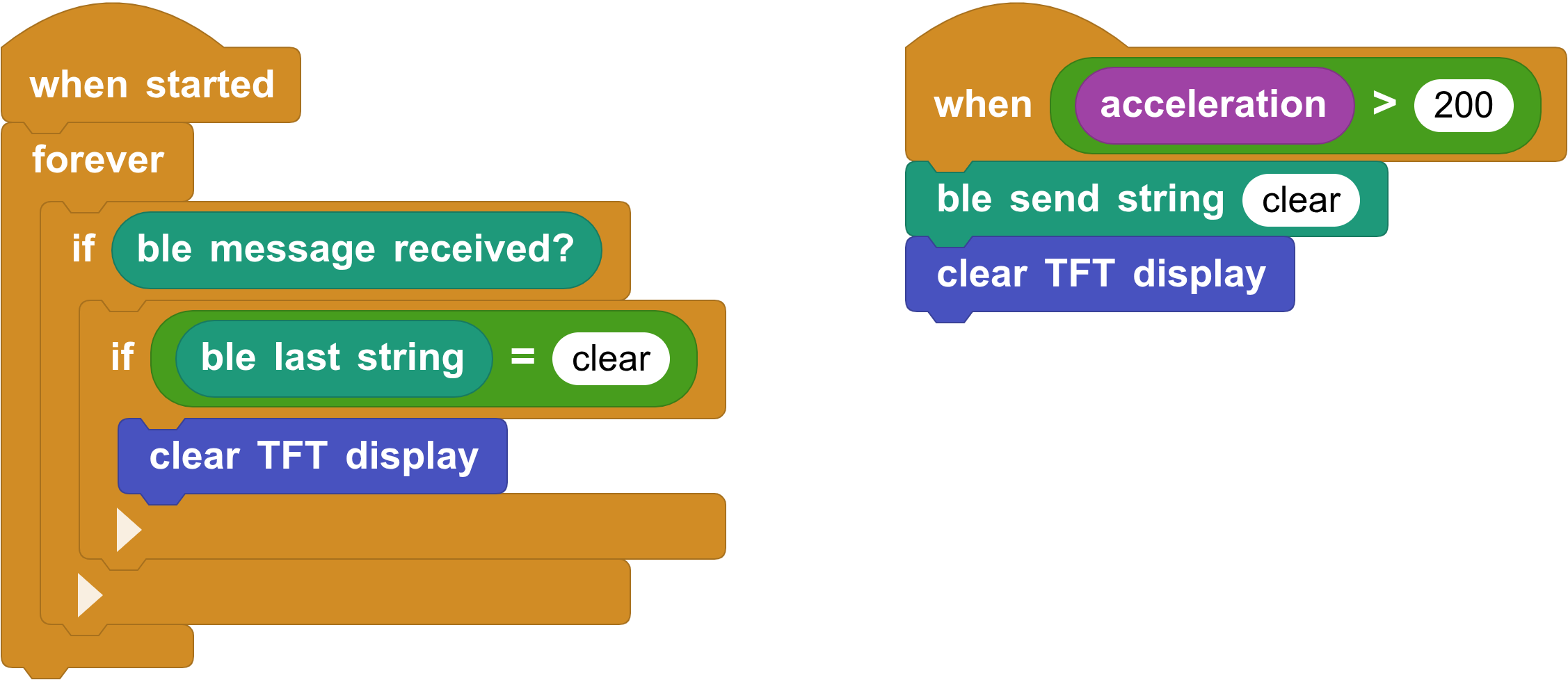

• To clear the screen, we'll use the accelerometer to detect a shake gesture.

BLE Radio

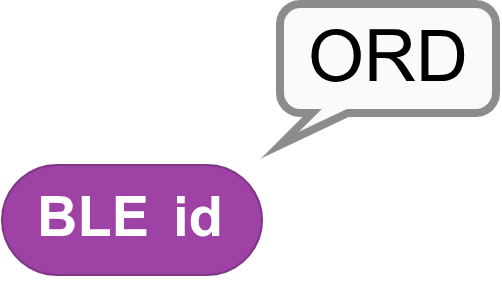

• To communicate between boards, we'll use the BLE Radio library. BLE support must be enabled on the board. If the board has an LCD screen, it will display a three-letter BLE identifier on startup. We can also use the BLE identifier block in the Input category to check this value.

• To enable or disable this functionality, click the options icon and select enable or disable BLE.

• BLE communication is very simple and does not require device pairing. The range is limited to about 10 meters.

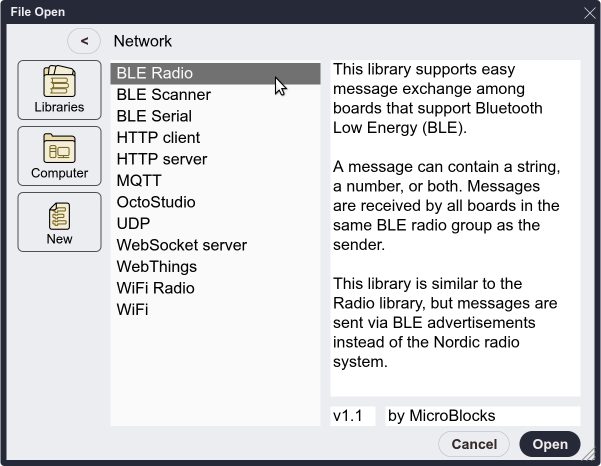

• Next, we import the BLE Radio library.

• To send a string, we use the ble send string _ block.

• To receive data, we need two blocks: ble message received? and ble last string, placed inside a loop block.

• The text is received by all boards connected via BLE Radio, except the board that sends the message.

Sending and receiving circle coordinates

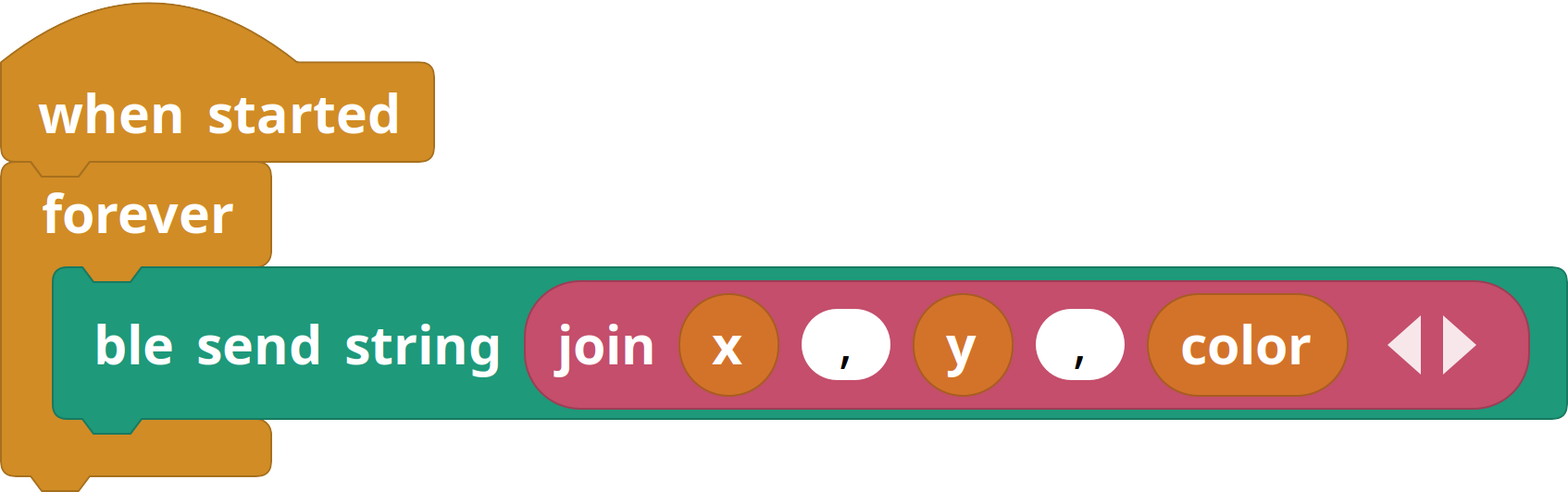

• To send the coordinates, we construct a text containing all the information using the join _ _ block from the Data category.

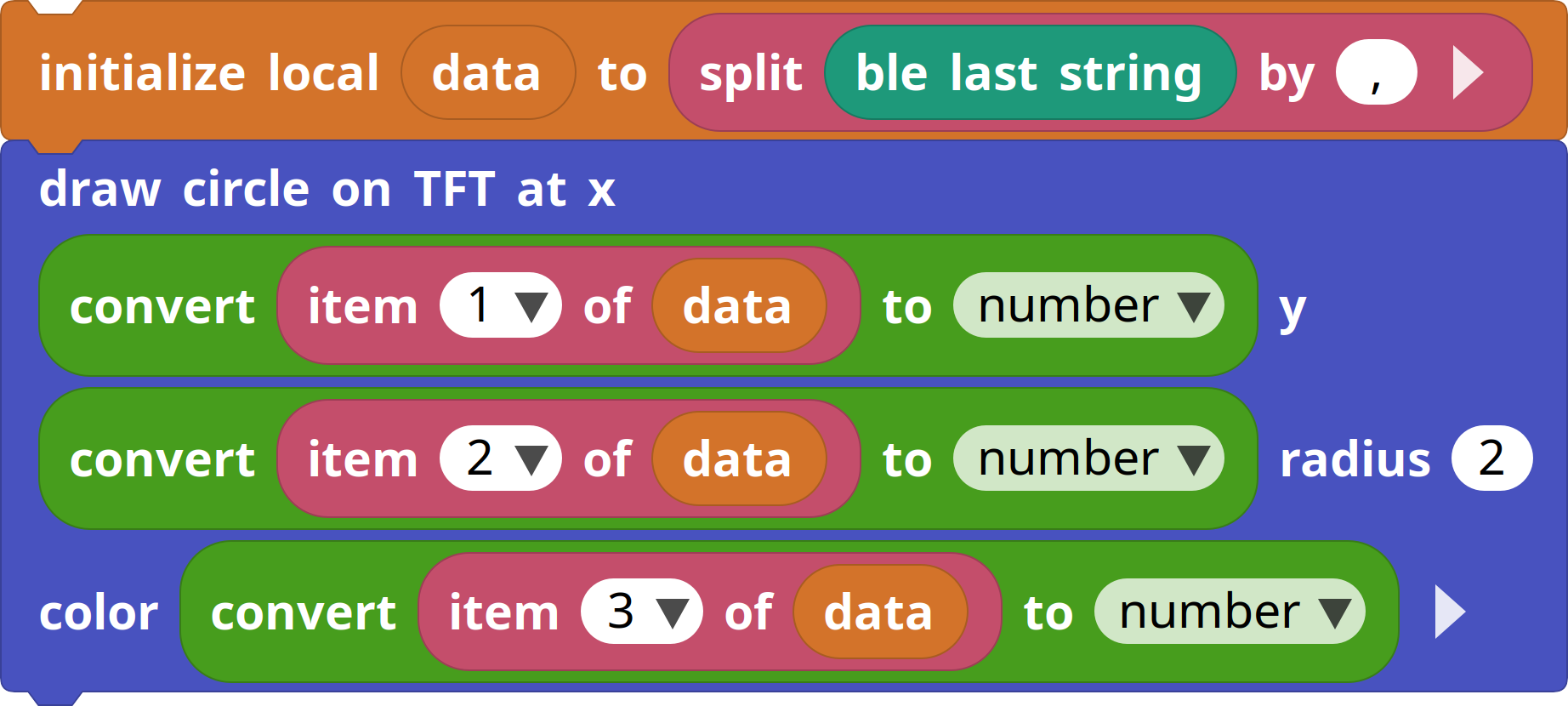

• To receive the coordinates, we split the received text using the split _ by _ block and draw the circle with the received coordinates.

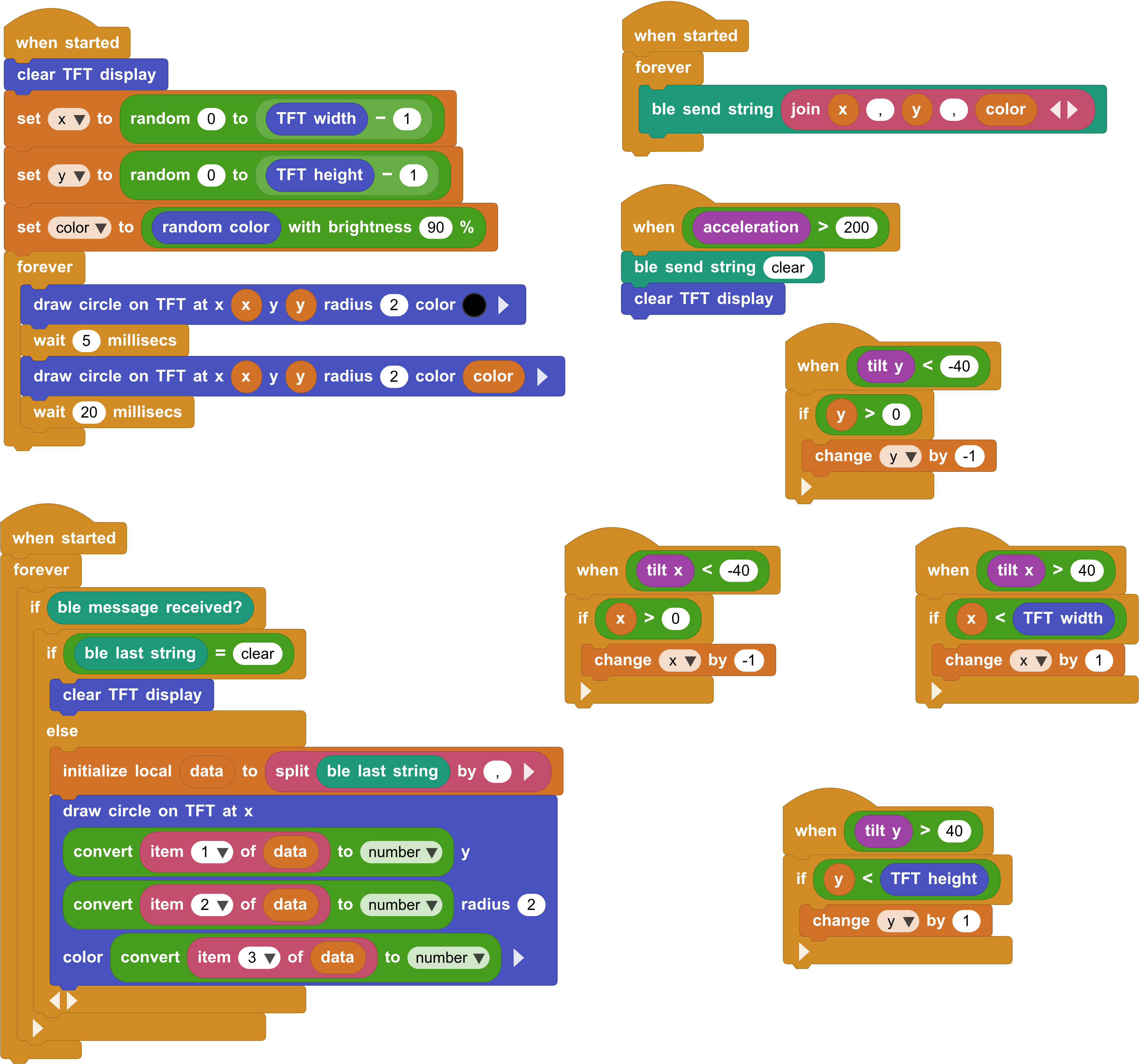

Final Challenge 1: Complete the collaborative Telesketch!

• The way the circle is shown has been slightly modified to make it blink a bit, helping to distinguish our own drawing.

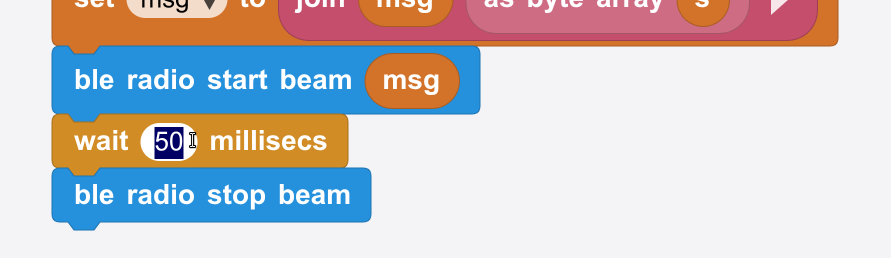

• BLE data transfer is slow, and messages can occasionally be lost, especially with many devices connected. You can adjust the wait time at the end of the ble send pair _=_ block to make the received drawings more continuous. ble

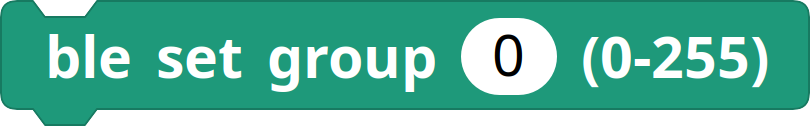

• As mentioned, BLE messages are received by all boards. It's possible to send messages to a specific group of boards using the ble set group _ (0–255) block. Only boards in the same group will communicate.

Communication with OctoStudio

For boards with Bluetooth BLE, LED screen, and accelerometer, such as the ED1, M5Stack-Core, micro:bit, micro:STEAMakers, Co-Cube, and others.

• OctoStudio is a free mobile app for block-based programming, developed by the creators of Scratch at the MIT Media Lab.

• It's specially designed for children aged 7 and up and it's available for Android and iPhone. Unlike App Inventor, it does not generate standalone apps.

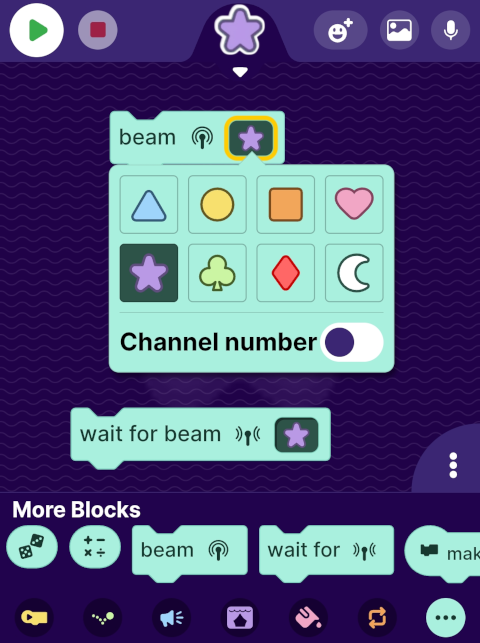

• One of OctoStudio's interesting features is that it includes a device-to-device communication method, similar to BLE Radio.

• Only eight different figures can be sent, but this is more than enough for many simple applications. Like BLE Radio, it also supports channels.

Figure race in OctoStudio

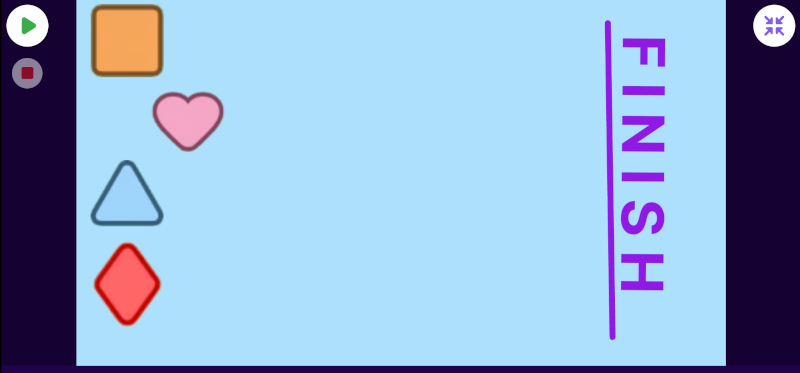

• To demonstrate communication between OctoStudio and MicroBlocks, we'll create a race for up to 4 players who move their character by shaking their board. Let's see who gets to the finish line first!

• First, place the character at the starting line and adjust its size if necessary.

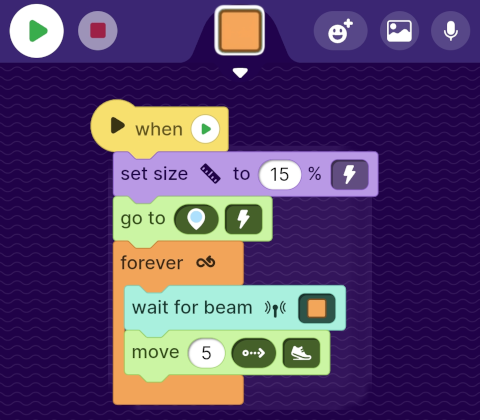

• Then, wait for a BLE signal corresponding to their figure to move forward a few steps.

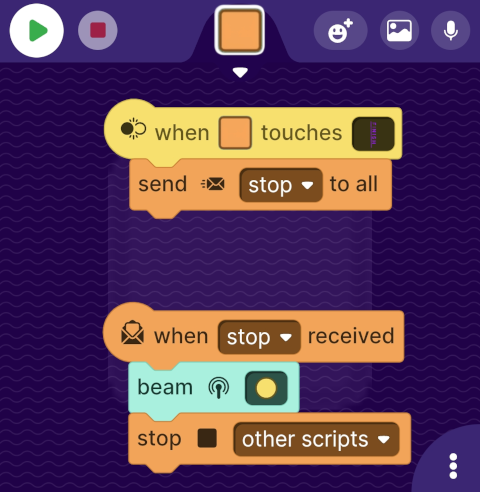

• Finally, we'll detect when a character touches the finish line and prevent others from continuing. We'll also emit a circle so boards receive a MicroBlocks signal that the race is over.

Figure race in MicroBlocks

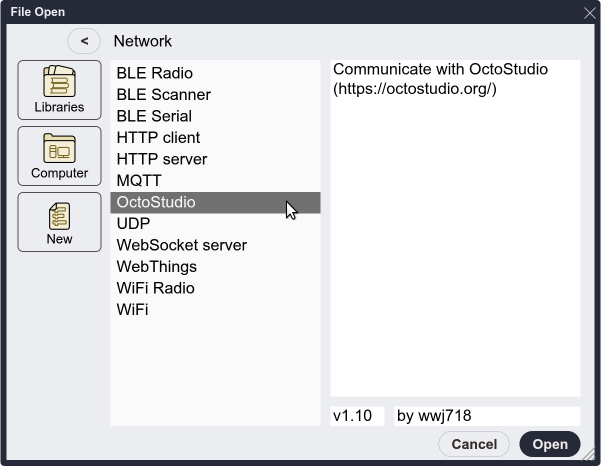

• In MicroBlocks, use the OctoStudio library from the Network category.

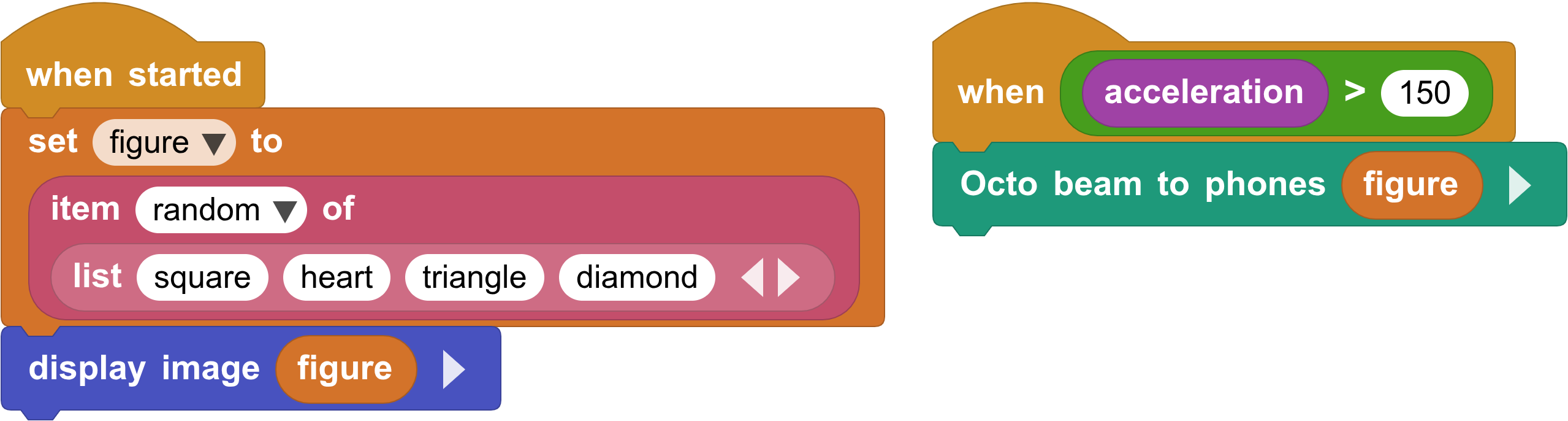

• To send a beam, use the Octo beam _ to phones block.

• The character is chosen at random from a list of figure names (in English). We use the name to show the character on the screen with the display image _ block from the LED Display library.

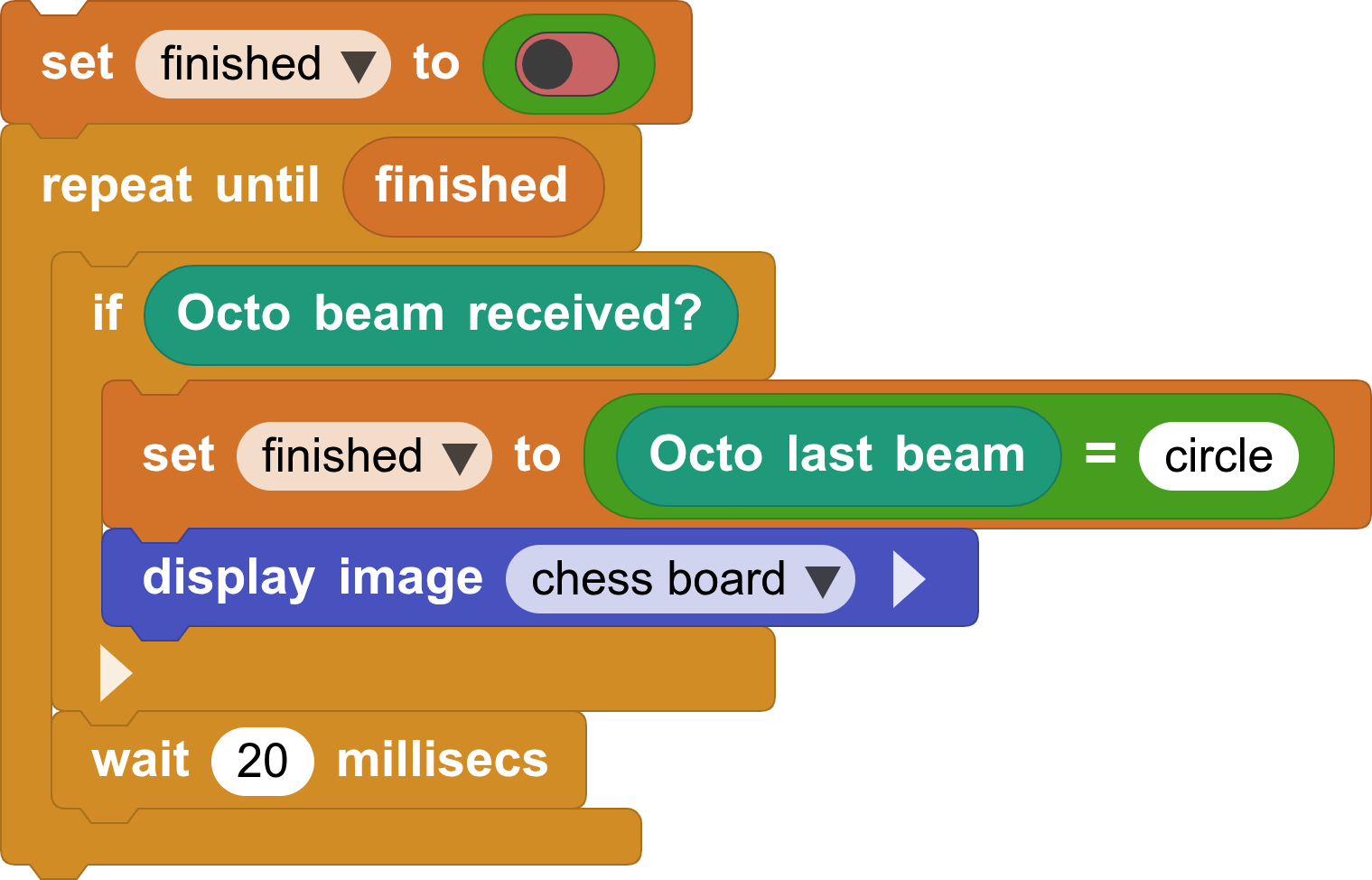

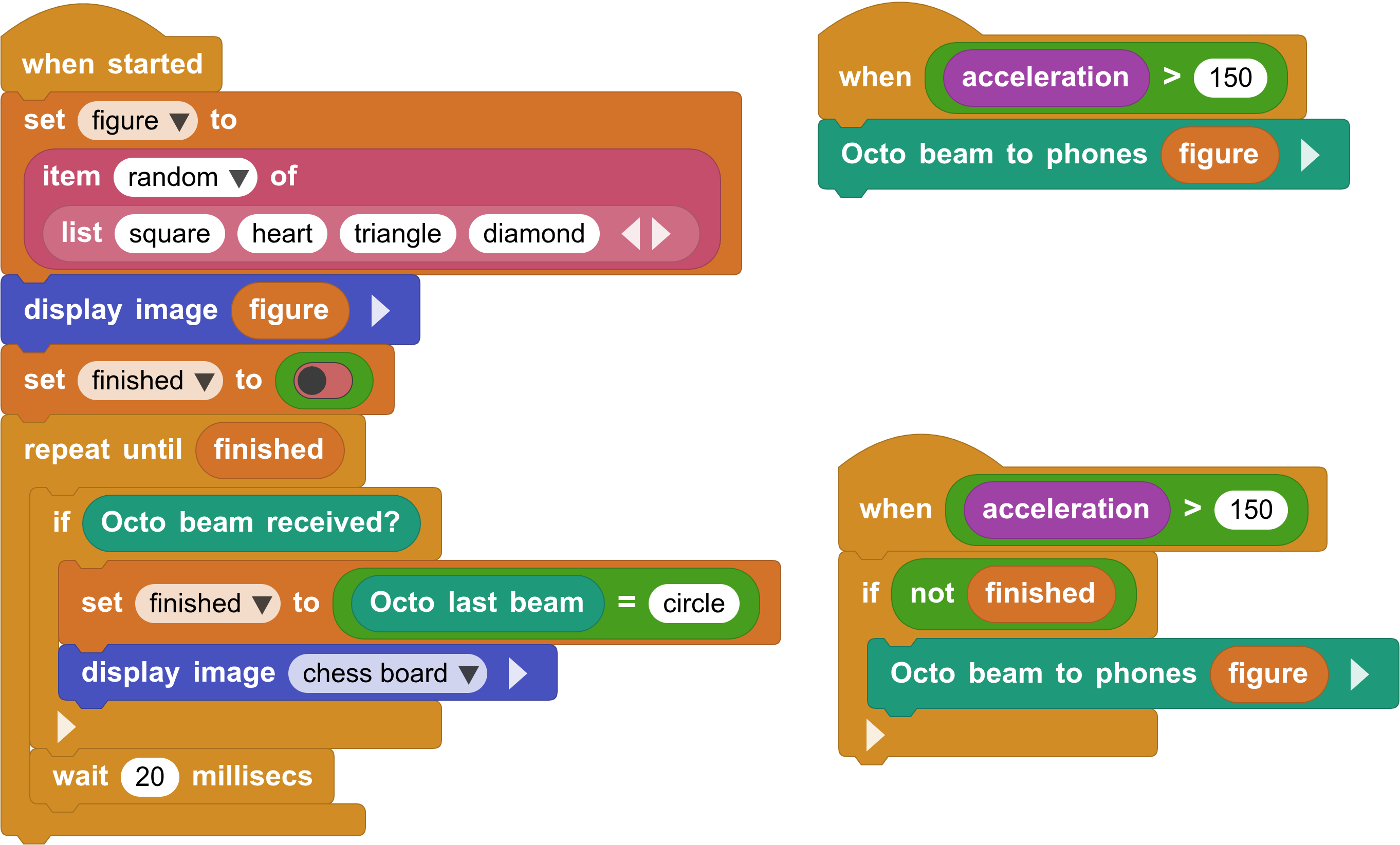

• To receive a beam, use the Octo beam received ? and Octo last beam blocks. In this case, we create a variable named finished, which activates when a circle is received from the OctoStudio app.

Final Challenge 2: Complete the figure race in both OctoStudio and MicroBlocks

• Figure race – OctoStudio app
