Fantastic Robot with Memory

Fantastic Robot with Memory

Lists

• To make the robot able to reproduce a few commands in a row, it is necessary to save them beforehand.

• We have already used variables to store numbers or texts. In this case we will use one to store a list of commands.

• Lists allow us to save a set of data that we can access individually.

• The Data category blocks are used to manipulate the lists.

Saving and deleting commands

• The block add _ to list _ allows you to add items to a list, on the other hand with the block delete item _ of list _ you can delete one, the last or all the items from the list .

• Our robot will have to empty the command list when starting or when we press the X button. This can be done by saving an empty list to the variable, or using the delete item _ of list _ block with the all option selected.

• Each movement button will save an identifier of the corresponding order. The wait 500 millisecs block prevents many commands from being added when a button is pressed.

Selecting and executing commands

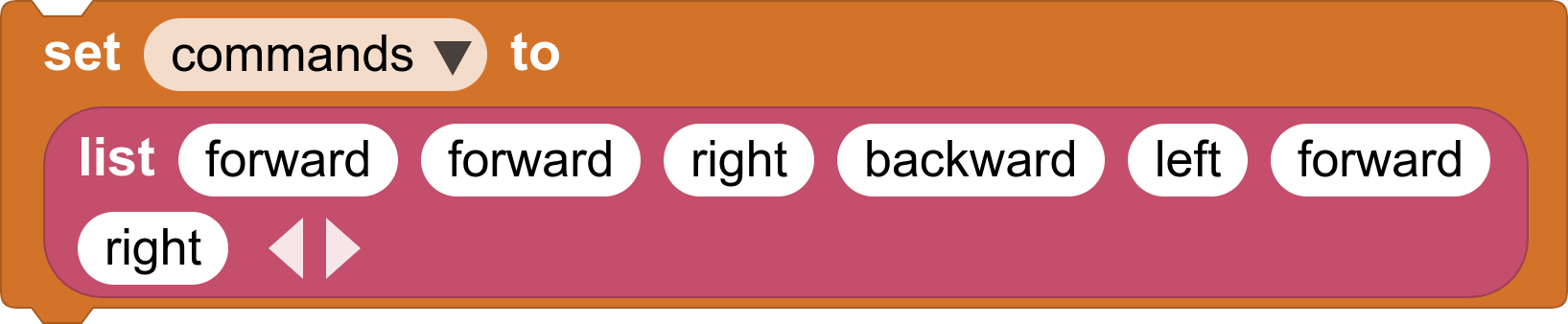

• In the commands list we have the sequence of movements that we want the robot to execute. For example:

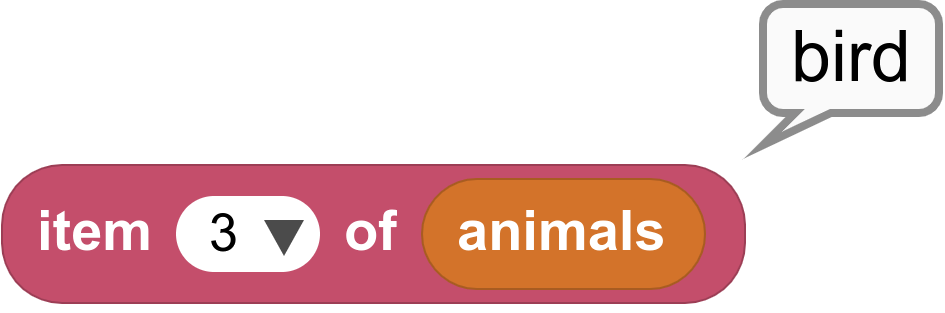

• To access a command, use the block item _ of _.

• The control block for i in _ allows iterating through the list. The value of i corresponds to each of the saved items or commands.

• All that remains is to move the engines based on the commands in the list with the OK button.

Challenge 1: Program the robot with memory.

Child ED1 robot

• The program used in schools with the Fantastic robot adds sounds and images to the screen to improve interactivity.

• You can download it from here.
